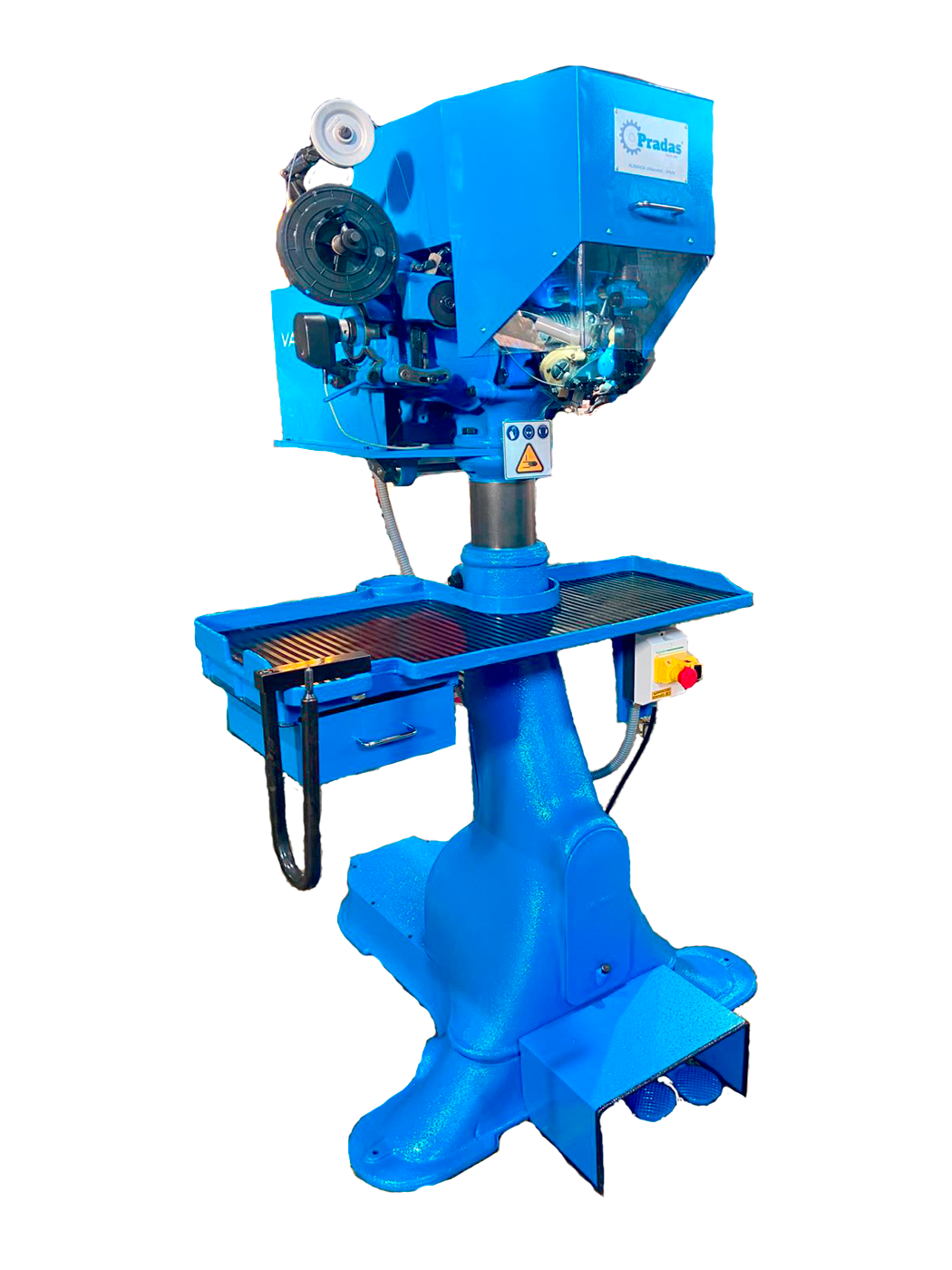

Staple Side Lasting Machine USL-B Vario Stop 09765

COD. 09765 Categorías: , Estado:
  • This machine is used in Goodyear production to tighten the cut to the last and fit it to the rib using staples, which the machine itself produces from a roll of wire.

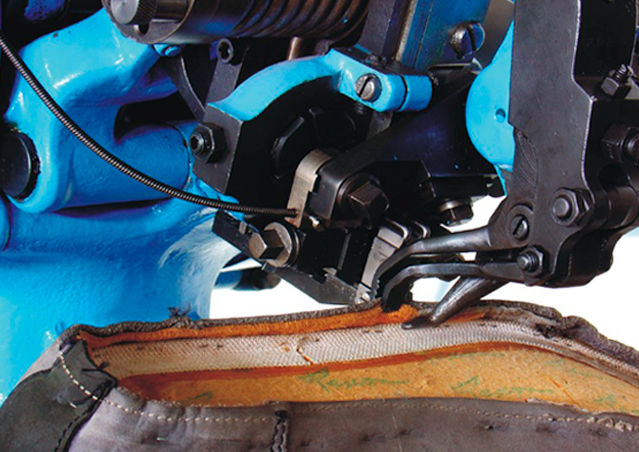

  • The adjustable pincers facilitate the tightening operation, pulling the leather and the lining against the rib while the machine nails the staples.
  • The staples close against the anvil guide, which ensures the shoe is consistently maintained at the same height. The machine can staple around the entire perimeter of the shoe thanks to its adjustable system.
  • As the wire is very fine this does not complicate make the welt stitching.
  • This machine has been designed to solve the common problems of mechanical machines replacing the brake and the clutch with a variable speed electronic motor.

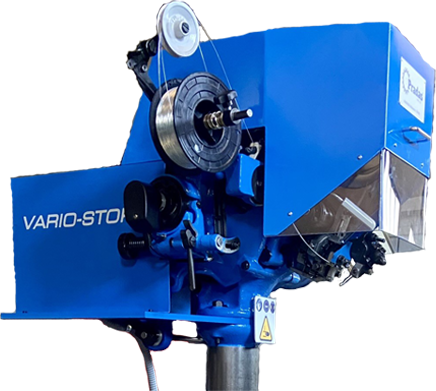

  • In order to prevent disturbing noise for the operator, the machine is equipped with a protective cover on the head, lined with sound-absorbing material.
